Programmers Guide Overview

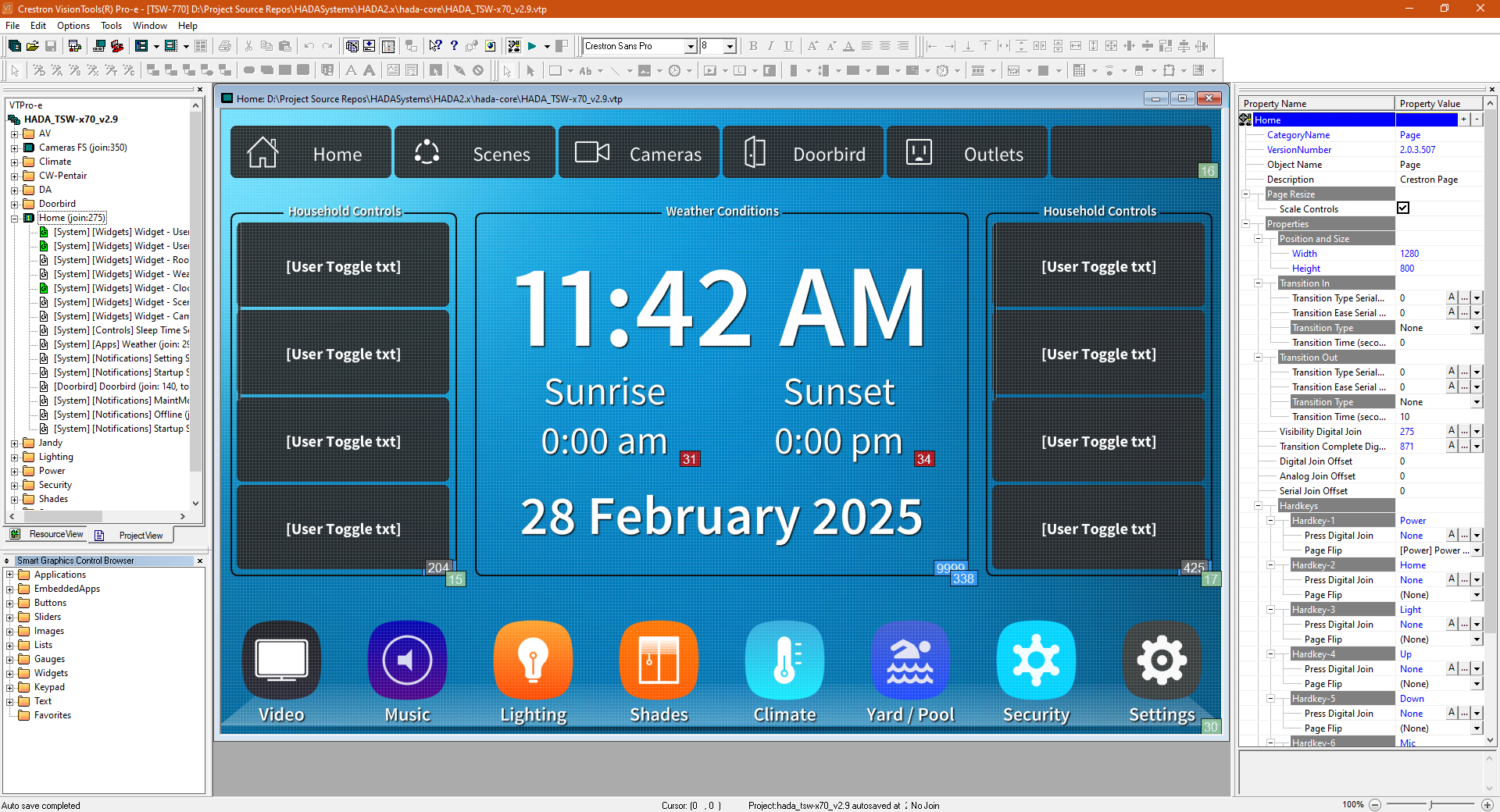

(HADA Smart home OS Interface Project Open in VT-Pro)
The HADA Smart Home OS Core System.
We have designed the HADA Smaret Home OS platform to be truly multi-processor capable, mening that the Core system and the Client Device Drivers are isolated in seperate program slots. This allows for the drivers to be placed on any processor that has network connectivity to the processor running the HADA Smart Home OS Core. This means you can easily incorporate existing systems into the HADA platform as a room/zone and those systems can be anywhere that offers network connectivity.

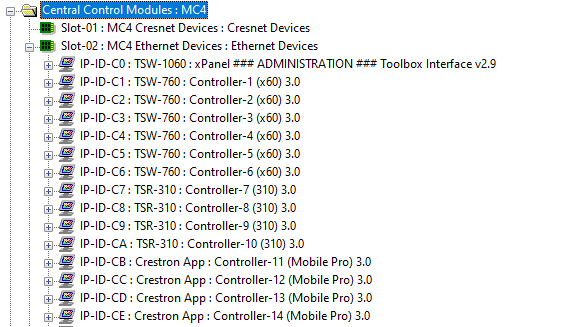

You can reconfigure the 14 user touch panel type remotes to meet the needs of your customer's. The system comes pre-configured with 6 TSW Panels, 4 TSR-310 Remotes and 4 Crestron Mobile App connectors.
Additional Custom Sub-Systems can be added to the Core directly or by using the reserved backplane connectors allowing you to place custom code in the driver pack while linking to the existing Touch Panels.
We offer a downloadable Drivers Template that comes with all endpoints pre-configured with all signals populated (just commented out). All you need to do is add the device modules to match you deployment and link them to the proper signals. With this setup we have been able to fully deploy full systems in a single day, saving you time and increasing profits.
We have designed HADA to be Multi-Processor ready. This feature allows you to use smaller remote processors for distant locations where running hard wires just can not be done. The sub-processor then runs the driver package and communicates to the HADA Core via TCP/IP network connections.
