Device Control Screens

HADA Smart Home OS has a built in templating system that allows for up to 50 distinct control screens for both Audio Visual and Distributed Audio devices. We have included screens for most popular client devices and will be releasing more over time into our base project and a separate screen only download that can be quickly copied into your existing projects. Each of the device screens can also be named to make choosing the correct one during configuration via the HAdmin setup tool.

From within the VT-Pro project you can see the installed device screens in the DScreens folder of each related system (AV and DA). If you do not see the folders in your view then you can activate them 2 ways.

Option 1

Right click on the project name/title within the project view and select 'Show Folders'.
This will turn folders view on for this project.

Option 2

Open the Application Preferences by clicking on the Options Menu -> Prefrences -> Application

Check the box for 'Always Show Folders' and click OK.

Adding New Control Screens

New Device control screens can be added at any time you like. The simplest way of adding a new screen would be to make a copy of an existing screen, rename it to match the device you are going to add, and then assign it to a new Active ID. Doing it this way will get you most of the needed signals and can be modified from there. This also has the added benefit of already being the correct size to fit the screen layout. We will release Device Screen Only projects that will allow you to simply copy the page from one project to the other and assign the Active ID number to use. Device Type ID numbers that define which screen to load in the template system are listed below in the Control Screen Active ID Numbers section. By using the predefined Interface Project ID Numbers (listed here) you can make control screens for any possible user device. If even more signals are needed than are built in, then they can be added
(Please Note: this is an advanced feature that requires modification of the Core)

View detailed instructions for adding new device screens

Control Screen Active ID Numbers

Control Screen Active ID numbers are the signal numbers in the project that actually cause the subpage to show on the screen. There are two defined sections (One for Audio Visual and another for Distributed audio) that each have 50 numbers.
Audio Visual Number are digital 400 - 449, while Distributed Audio Numbers are digital 450 - 499.
(Please Note: Some of these numbers are already in use with the existing screens so be aware of this when adding new control screens. See the Installed Screens section bellow for assigned numbers.)

View detailed instructions for adding new device screens

Installed Control Screens

We have pre built several screens for common popular devices and will be adding more over time.
Bellow is a list of currently installed device screens with images of there view for Touch screens and the TSR-310 remote, including their Active ID numbers.

Audio Visual Control Screens
Active ID	Device Name / Type	TSW / Mobile	TSR-310
400	Uncontrolled Device Generic screen for a non-controlled device, this could be a game console, or any other device that is not actually controlled by the system yet has an available input.
401	Media Player Use to control a linked media player (from the distributed audio system) in the local room as a device. This is usefull when adding a local room AV tuner input into the DA system for shared music availability.
402	Generic Streaming AV Device The Generic Streaming AV Device screen can be used for any streaming device that offers additional feedback for currently playing title. This screen was originally created to support Kalidiscape devices prior to our release of the Advanced Kalidiscape interface.
403	Cable Box (Set Top Box) Perfect for Set top and Satellite box control. Offers direct access to the Crestron Channel Favorites app that will display the local program guide directly on the touch screen and has a toggled keypad for direct channel access.
404	BluRay Player Suitable for all BluRay players (regardless of brand) and offers added information (if available from the device) to the user.
405	-----------------
406	Apple TV Simple straight forward controls for an Apple TV device
407	Amazon Fire TV / NVidia Shield Base controls for both the Amazon Fire TV and NVidia Shield streaming devices. We offer a purchasable control module that can control these devices via an attached IRUSB device. Details: Amazon Fire TV IRUSB Control Module, NVidia Shield IRUSB Control Module
408	-------------------------------
409	Kodi
410	Generic Smart TV Suitable for most integrated Smart TV devices (regardless of brand) and offers the ability to directly launch and control Applications installed on the client device.

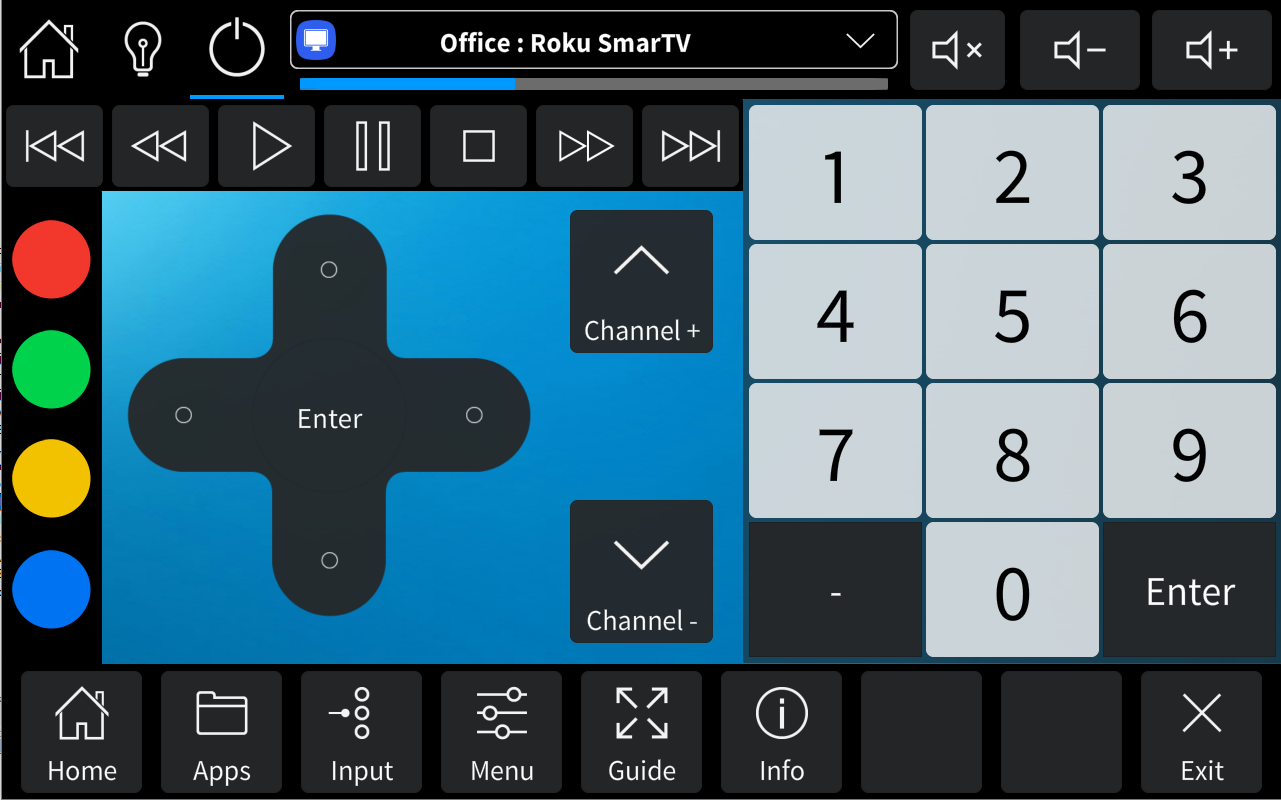

411	Roku / Roku TV
412	----------------------------------------

Distributed Audio Control Screens
Active ID	Device Name / Type	TSW / Mobile	TSR-310
450	Uncontrolled Device Generic screen for a non-controlled device, this could be a game console, or any other device that is not actually controlled by the system yet has an available input.

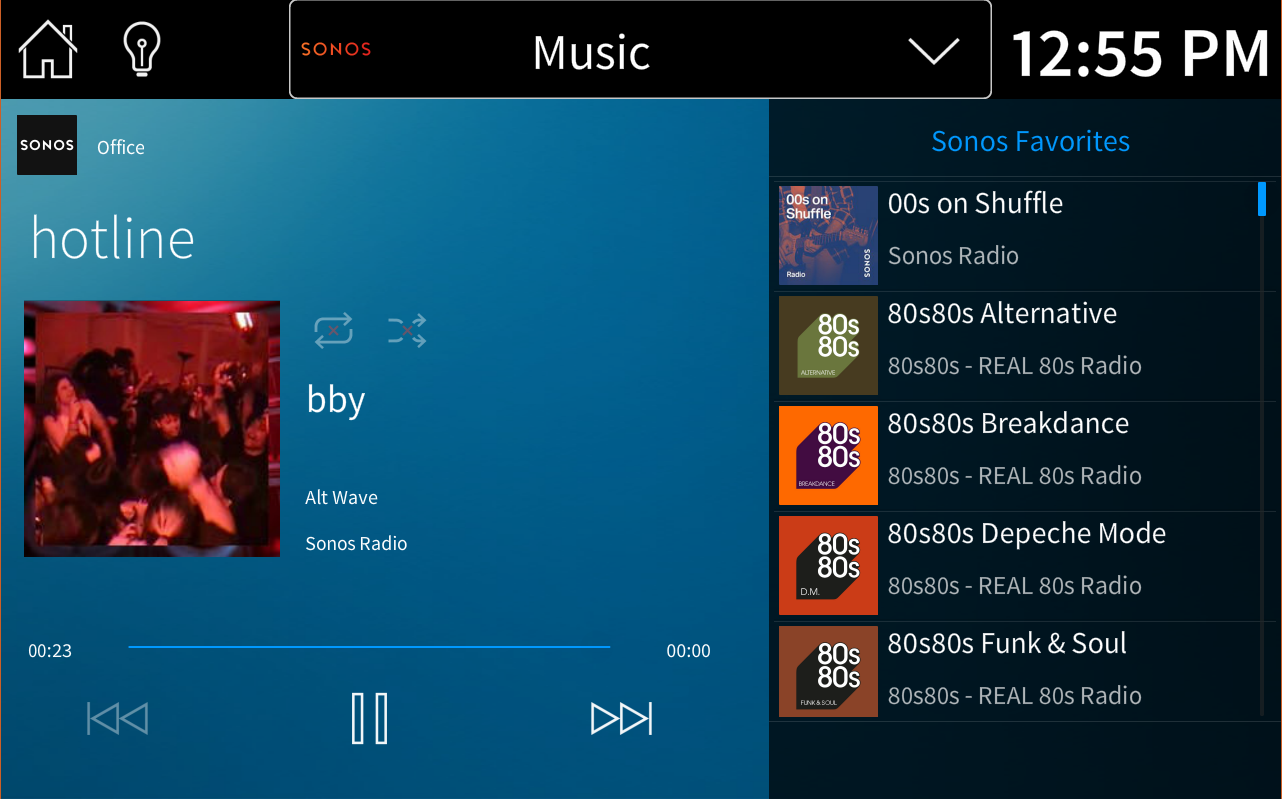

451	Media Player Crestron's Built in media player that uses CRPC signals to communicate. Works great with many streaming music devices such as Sonos and many others
452	CD Player Basic CD Player controls typically used with IR control for older existing devices.
453	AM/FM Tuner Basic AM/FM Tuner controls
454	Cable Box (Audio Feed) Great for adding cable box audio to the Distributed Audio system with basic controls. Perfect for setting up those sport bar areas with game audio.
